AcrySof IQ Vivity® IOL

Simplifying

Presbyopia Correction1-9



The First and Only presbyopia-correcting IOL

with wavefront-shaping technology and a

clinically proven monofocal

visual disturbance profile1-4

AcrySof IQ Vivity® IOL

Simplifying Presbyopia Correction1-9



The First and Only presbyopia-correcting IOL with wavefront-shaping technology and a  clinically proven monofocal visual disturbance profile1-4




Results from 2 Large Independent Trials:



AcrySof IQ Vivity® IOL Delivers Excellent Distance, Intermediate

and Functional Near Vision3,4

Blue icon of a car on a pale blue background.
Blue icon of a car on a pale blue background.

20/20



Binocular Mean
Uncorrected Distance
Visual Acuity (4 m)*



DISTANCE

Blue icon showing an open laptop on a pale blue background
Blue icon showing an open laptop on a pale blue background

Better Than 20/25



Binocular Mean
Uncorrected Intermediate
Visual Acuity (66 cm)*



INTERMEDIATE

Blue icon showing a hand holding a cell phone on a pale blue background.
Blue icon showing a hand holding a cell phone on a pale blue background.

20/32



Binocular Mean
Uncorrected Near
Visual Acuity (40 cm)*



NEAR

* Binocular uncorrected visual acuity results from a prospective, randomised, parallel group, subject- and assessor-masked, multisite trial of 107 subjects bilaterally implanted with the  AcrySof IQ Vivity® Extended Vision IOL and 113 with the AcrySof® IQ IOL with 6 months’ follow-up.

In All Light Conditions, AcrySof IQ Vivity® IOL Patients Reported Monofocal-Quality Distance With Excellent Intermediate and Functional Near Vision4





Percent of Patients Reporting Good or Very Good Vision Without Spectacles at 6 Months in Validated IOLSAT Questionnaire4*†

Alt text

* Patients were asked, “How well did you see without wearing eyeglasses in the past 7 days?”

† Results from a prospective, randomised, parallel group, subject and assessor masked, multisite trial of 107 subjects bilaterally implanted with the AcrySof IQ Vivity® Extended Vision IOL and 113 with the AcrySof® IQ IOL with 6 months follow-up.


AcrySof IQ Vivity® IOL Visual Disturbance Profile is Comparable to AcrySof® IQ Monofocal1,3,4





The majority of AcrySof IQ Vivity® IOL patients were not bothered at all by visual disturbances.4





Degree of Bother (%)*
Bar graph reporting how bothered patients were by starbursts, halos and glare after implantation with AcrySof IQ Vivity® IOL and AcrySof® IQ monofocal IOL. 106 patients were implanted with Vivity® IOL, and 110 patients were implanted with AcrySof® IQ monofocal IOL.       The graph displays that with the Vivity® IOL, 74% of Vivity® patients and 72% of monofocal patients were not bothered at all by starbursts. 83% of Vivity® patients and 89% of monofocal patients were not bothered at all by halos. 78% of Vivity® patients and 76% of monofocal patients were not bothered at all by glare.    14% of Vivity® patients and 15% of monofocal patients were bothered a little by starbursts. 12% of Vivity® patients and 6% of monofocal patients were bothered a little by halos. 11% of Vivity® patients and 10% of monofocal patients were bothered a little by glare.    9% of Vivity® patients and 11% of monofocal patients were bothered somewhat by starbursts. 3% of Vivity® patients and 5% of monofocal patients were bothered somewhat by halos. 7% of Vivity® patients and 12% of monofocal patients were bothered somewhat by glare.    1% of Vivity® patients and 2% of monofocal patients were bothered quite a bit by starbursts. 1% of Vivity® patients and 1% of monofocal patients were bothered quite a bit by halos. 4% of Vivity® patients and 3% of monofocal patients were bothered quite a bit by glare.       2% of Vivity® patients and 1% of monofocal patients were bothered very much by starbursts. 1% of Vivity® patients and 0% of monofocal patients were bothered very much by halos. 0% of Vivity® patients and 0% of monofocal patients were bothered very much by glare.

Diffractive trifocal technology IOLs can deliver reduced spectacle dependance, but it's not for every patient. Some patients are not candidates due to low tolerance for visual disturbances or other ocular health problems.10-12

* Results from a prospective, randomised, parallel group, subject and assessor masked, multisite trial of 107 subjects bilaterally implanted with AcrySof IQ Vivity® Extended Vision IOL and 113 with AcrySof® IQ IOL with ​6 months follow-up. Visual disturbances were evaluated subjectively through QUVID questionnaire. Patients were asked: “In the past 7 days, how much were you bothered with starbursts, halos, and glare?” ​


Visual Disturbance Profile: AcrySof IQ Vivity® Had an Optical Halo Comparable to a Monofocal IOL5



Optical Bench Halo Measurements (4.5 mm Pupil Size)

Black background with a bright light in the middle representing the optical bench halo measurement for AcrySof® IQ Monofocal IOL.
Black background with a bright light in the middle representing the optical bench halo measurement for AcrySof® IQ Monofocal IOL.

AcrySof® IQ
Monofocal IOL
Black background with a bright light in the middle with a slight halo around the light, representing the optical bench halo measurement for AcrySof IQ Vivity® IOL.
Black background with a bright light in the middle with a slight halo around the light, representing the optical bench halo measurement for AcrySof IQ Vivity® IOL.

AcrySof IQ Vivity®
IOL Wavefront-Shaping
Technology
Black background with a bright light in the middle, with a halo around the light larger than the AcrySof® IQ Monofocal and AcrySof IQ Vivity® IOLs, representing the optical bench halo measurement for TECNIS Symfony Diffractive EDF IOL
Black background with a bright light in the middle, with a halo around the light larger than the AcrySof® IQ Monofocal and AcrySof IQ Vivity® IOLs, representing the optical bench halo measurement for TECNIS Symfony Diffractive EDF IOL

TECNIS Symfony*
Diffractive EDoF
Black background with a bright light in the middle, showing the largest halo around the light compared to the three other images, representing the optical bench halo measurement for ZEISS AT LARA Diffractive EDF IOL.
Black background with a bright light in the middle, showing the largest halo around the light compared to the three other images, representing the optical bench halo measurement for ZEISS AT LARA Diffractive EDF IOL.

ZEISS AT LARA* 829 MP
Diffractive EDoF

These are representative images from a benchtop study.

*Trademarks are property of their respective owners.



    AcrySof IQ Vivity® IOL is the First and Only presbyopia-correcting IOL that uses a next generation optical principle, called wavefront-shaping, that stretches and shifts the light1-4



    ✓ The AcrySof IQ Vivity® IOL uses wavefront-shaping technology, which is invisible to the naked eye, making it virtually indistinguishable from the AcrySof® IQ monofocal1,2



    ✓ Surface Transition #1: A slightly elevated smooth plateau (~1 µm high) that stretches the wavefront, creating a continuous focal range2



    Surface Transition #2: A small curvature change (across the 2.2 mm region) that shifts the wavefront to utilise all available light energy2





    Golden 3-dimensional image of the AcrySof IQ Vivity® IOL.



    AcrySof IQ Vivity® IOL is the First and Only presbyopia-correcting IOL that uses a next generation optical principle, called wavefront-shaping, that stretches and shifts the light1-4



    ✓ The AcrySof IQ Vivity® IOL uses wavefront-shaping technology, which is invisible to the naked eye, making it virtually indistinguishable from the AcrySof® IQ monofocal1,2



    ✓ Surface Transition #1: A slightly elevated smooth plateau (~1 µm high) that stretches the wavefront, creating a continuous focal range2



    ✓ Surface Transition #2: A small curvature change (across the 2.2 mm region) that shifts the wavefront to utilise all available light energy2





    Golden 3-dimensional image of the AcrySof IQ Vivity® IOL with white graphic lines that draw focus to the middle of the lens, highlighting the slightly elevated smooth plateau that contributes to the lens’s wavefront-shaping technology.




    AcrySof IQ Vivity® IOL is the First and Only presbyopia-correcting IOL that uses a next generation optical principle, called wavefront-shaping, that stretches and shifts the light1-4



    ✓  The AcrySof IQ Vivity® IOL uses wavefront-shaping technology, which is invisible to the naked eye, making it virtually indistinguishable from the AcrySof® IQ monofocal1,2



      Surface Transition #1: A slightly elevated smooth plateau (~1 µm high) that stretches the wavefront, creating a continuous focal range2



    ✓  Surface Transition #2: A small curvature change (across the 2.2 mm region) that shifts the wavefront to utilise all available light energy2





    Golden 3-dimensional image of the AcrySof IQ Vivity® IOL with white graphic lines that draw focus to the middle of the lens highlighting the small curvature change that contributes to the lens’s wavefront-shaping technology.

    Unique Mechanism of Action


    The AcrySof IQ Vivity® IOL uses wavefront-shaping technology to deliver distance, intermediate, and functional near vision for patients, as well as a clinically proven monofocal visual disturbance profile.1-4

    The wavefront-shaping technology of the AcrySof IQ Vivity® IOL is called X-WAVE™ Technology and is proprietary to Alcon.

    Wavefront-shaping stretches the light. It doesn’t bend light like refraction, or split light like diffraction.

    Just like a monofocal, Vivity® utilises essentially all of the transmitted light energy that passes through the lens. The smooth surface transition elements on the AcrySof IQ Vivity® IOL stretch and shift the wavefront to provide a full range of vision with functional near visual acuity to help reduce spectacle dependence.1-4



      AcrySof IQ Vivity® IOL Delivers Excellent Distance, Intermediate and Functional Near Vision3,4

      Slightly blurred image of a coffee shop with a view from the counter of coffee machines and other ingredients. A laptop is open on the countertop and an individual’s hand holds up a coffee mug to the right of the laptop screen. White text at the top left corner of this image reads “Monofocal.”
      Clear image of a coffee shop with a view from the counter of coffee machines and other ingredients. A laptop is open on the countertop and an individual’s hand holds up a coffee mug to the right of the laptop screen. White text at the top left corner of this image reads “AcrySof IQ Vivity.”

      Vision Simulation: Day-time Activity





      Clinically Proven Monofocal Visual Disturbance Profile1-4

      Car on the road in dim lighting with phone set up on the dashboard. White text at the top left corner of this image reads “Monofocal.”
      Car on the road in dim lighting with phone set up on the dashboard. White text at the top left corner of this image reads “AcrySof IQ Vivity.”

      Vision Simulation: Night-time Activity

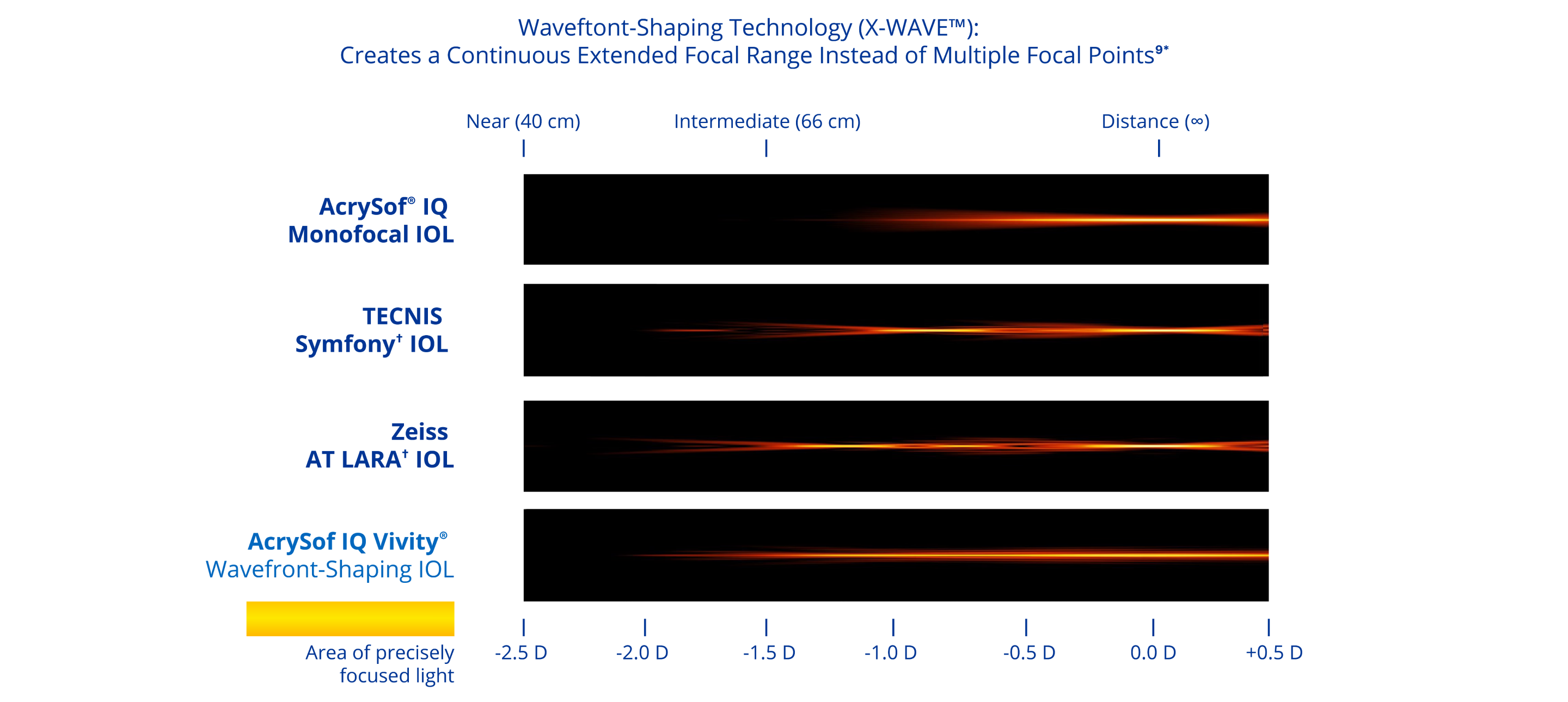

      Surface Transition Elements Affect Light Energy Distribution*



      The proprietary, wavefront-shaping design creates a monofocal visual disturbance profile and a continuous range of vision for patients.1-4 With the AcrySof IQ Vivity® IOL, light spans a continuous focal range, instead of being split amongst multiple focal points.9

      A graphic illustrating the range of vision with four different IOLs. The AcrySof® IQ monofocal IOL provides distance vision. The Symfony IOL provides distance, intermediate and near vision. The AT LARA IOL provides vision at distance and two intermediate focal points. The AcrySof IQ Vivity® IOL provides a continuous range of vision from distance to functional near.

      *Simulated photopic through-focus point spread function (light intensity [energy]) – polychromatic.

      Trademarks are the property of their respective owners.

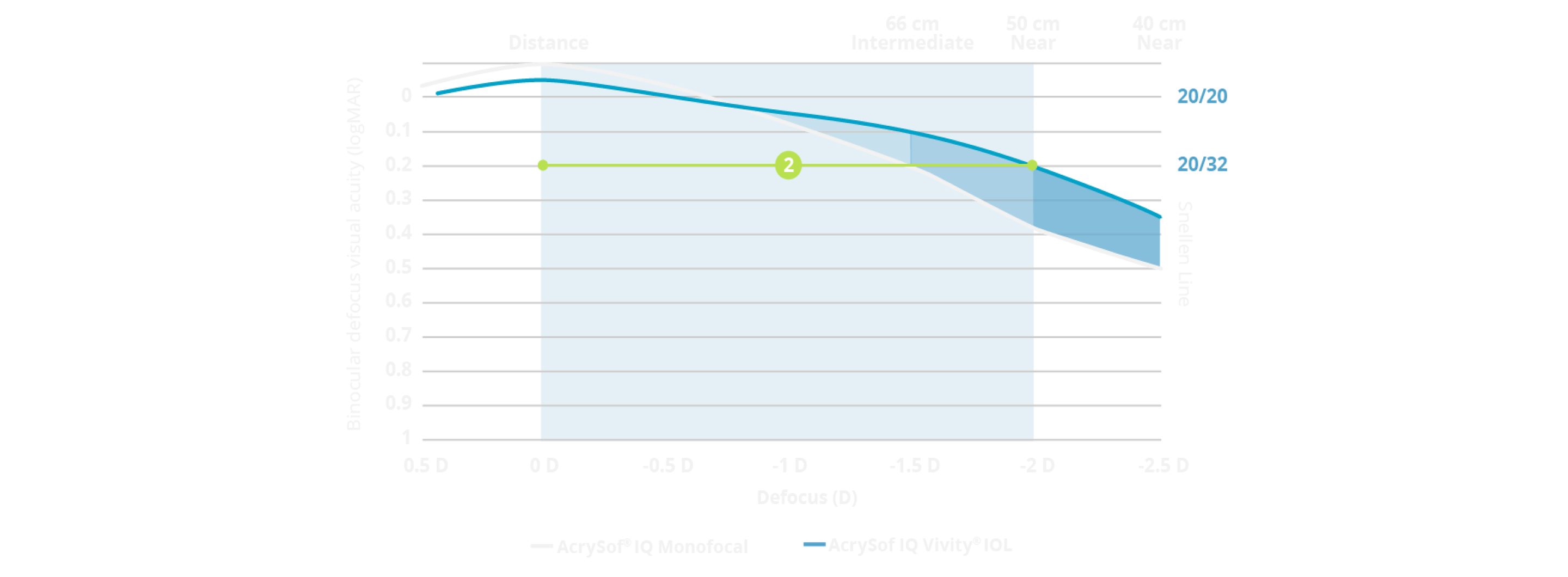

      The Flat Defocus Curve Delivers Confidence in Hitting a Refractive Target With AcrySof IQ Vivity® IOL3

        6-Month Binocular Distance Corrected Visual Acuity3*

        Defocus curve graph showing that the defocus range for AcrySof IQ Vivity® is comparable to that of AcrySof® IQ monofocal. A portion of the graph is highlighted showing that Vivity® patients can achieve 20/20 (0 logMAR) visual acuity even with a refractive miss of ±0.5 diopters.

        A refractive miss of +/- 0.5D can still leave
        a patient with VA of 20/20







        * Adaptation based on data obtained from a prospective, randomised, controlled study of bilateral implantation of 106 AcrySof IQ Vivity® patients and 111 AcrySof® IQ monofocal IOL patients from a computerised visual acuity test system.

        6-Month Binocular Distance Corrected Visual Acuity3*

        Defocus curve graph showing that the defocus range for AcrySof IQ Vivity® is comparable to that of AcrySof® IQ monofocal. A portion of the graph is highlighted, showing that Vivity® allows patients to experience a continuous range of vision from distance to as close as 50 cm


        AcrySof IQ Vivity® IOL patients experience a continuous extended
        range of vision from distance to as close as 50 cm

        See Why Patients Say The AcrySof IQ Vivity® IOL

        Was The Right Choice For Them


        Leslie, United Kingdom



        Leslie is a patient who has been playing tennis for years, the AcrySof IQ Vivity® IOL allowed him to play again with the eye surgeon who implanted the lens, while still reading the newspaper without glasses.1


        Antonio, Spain



        Antonio is representative of patients who participated in the global AcrySof IQ Vivity® IOL studies, reporting 20/20 distance VA, >20/25 intermediate distance VA (66 cm), and 20/32 near VA (40 cm).1


        Maria, Spain



        Maria is like many patients who are most suited for a lens with a continuous range of vision in order to maintain their hobbies and active lifestyle.1


        Elena, Spain



        Elena is an AcrySof IQ Vivity® IOL patient who represents many patients who are considered unsuitable for PCIOLs; these include people with Type A personalities, people who drive at night, and who have mild glaucoma.1

        The patients that appear in these videos express opinions that are their own, based on their own experiences.

        These videos are not a substitute for medical advice or information.

        Technical Specifications1,2

        Alt text

        Instructions for Use (IFU)



        For a full list of indications, contraindications and warnings, please visit ifu.alcon.com and refer to the relevant product’s instructions for use.

        Alcon Experience Academy



        For relevant training content from industry thought leaders

        References:
        1. AcrySof IQ Vivity® Extended Vision IOL Directions for Use.
        2. Alcon Data on File. US Patent 9968440 B2. 15 May 2018.
        3. Bala C, et al. Multi-country clinical outcomes of a new nondiffractive presbyopia-correcting intraocular lens. J Cataract Refract Surg. 2021: Ahead of print. doi:10.1097/j.jcrs.0000000000000712.
        4. Alcon Data on File. TDOC-0055576. 23-Jul-2019.
        5. Alcon Data on File, TDOC-0056718. 18 Jun 2019.
        6. Ligabue E, et al. ACRYSOF IQ VIVITY: Natural vision at a range of distances provided by a novel optical technology. Cataract & Refractive Surgery Today. April 2020.
        7. Alcon Data on File. A02062-REP-043696, Optical Evaluations of Alcon Vivity®, Symfony*, and Zeiss* AT LARA* IOLs.
        8. Lawless M. Insight news. “An IOL to change the cataract surgery paradigm?” available at “https://insightnews.com.au/an-iol-to-change-the-cataract-surgery-paradigm/”. Accessed 17 Jul 2020.
        9. Ike K. Ahmed, et al. The Vivity Extended Depth of Focus IOL: Our Clinical Experience. Cataract & Refractive Surgery Today. February 2021//.
        10. Braga-Mele R, et al. Multifocal intraocular lenses: relative indications and contraindications for implantation. J Cataract Refract Surg.  2014;40(2):313-322.
        11. Gundersen KG, et al. Retreatments after multifocal intraocular lens implantation: an analysis. Clin Ophthalmol. 2016:10;365–371.
        12. Zvornicanin J, et al. Premium intraocular lenses: The past, present and future. J Curr Ophthalmol. 2018;30(4):287-296.
        13. Alcon Internal Memo, September 2020. REF-12576.



        For indications, contraindications and warnings, please refer to the relevant product's instruction for use. Find at: https://ifu.alcon.com/
